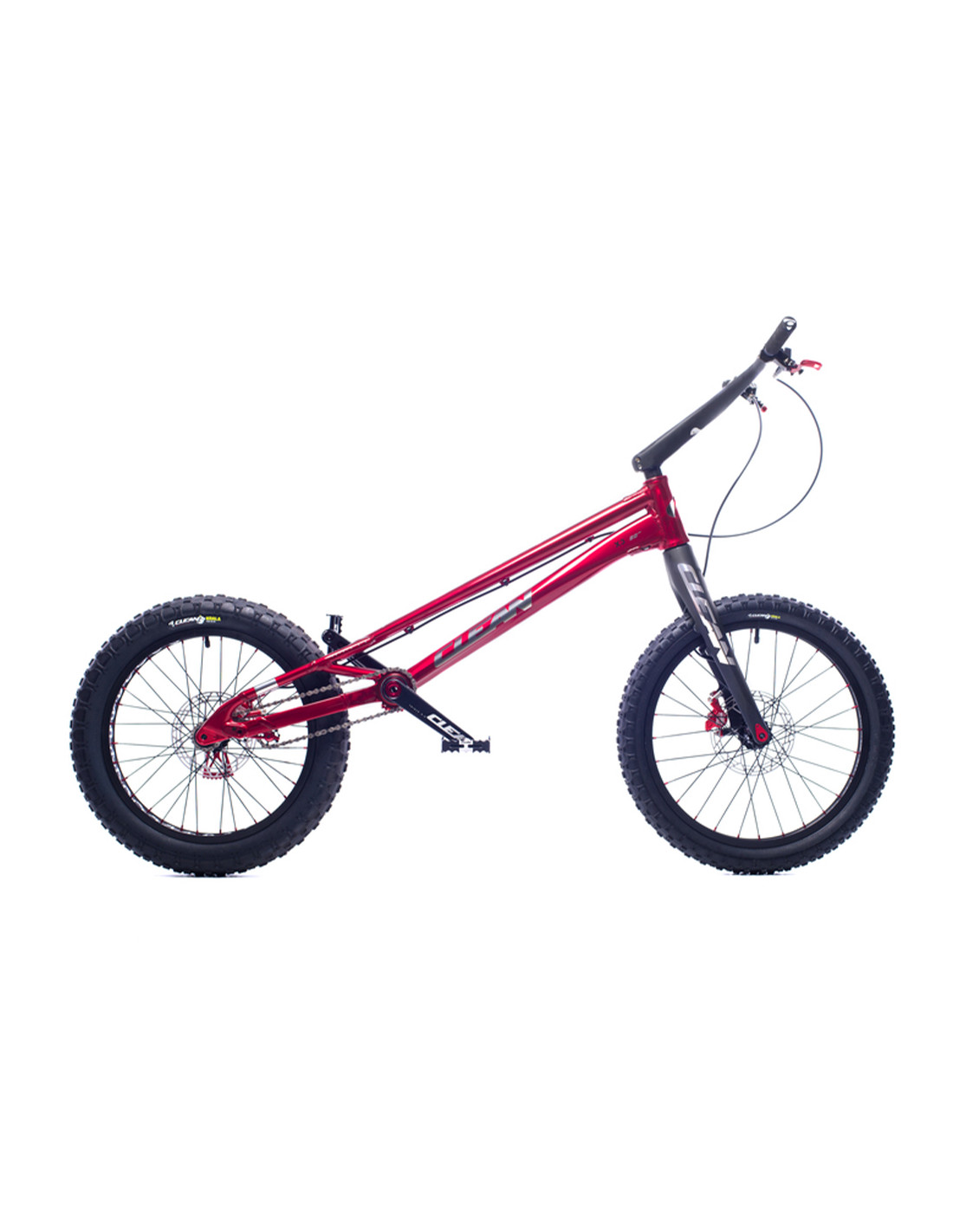

Clean X3 WC Edition 2023 20" Bike

· Option 1: Hope Tech 3 Trial Zone front and rear disc brakes (Disc/Disc).

· Option 2: Clean HS front rim brake and Hope Tech 3 Trial Zone rear disc brake (HS/Disc).

Frame and fork

- Frame: Clean X3 2023 20”, made from 6061-T6 + 7075-T6 aluminium alloys, with Post Mount disc brake mounts and exchangeable dropout inserts

- Forks: Clean K1 2022 20” Carbon tapered 1 1/8” – 1.5”, made of carbon fibre, with Post Mount disc brake mounts, 4-bolt rim brake mounts and exchangeable dropout inserts Wheels

- Front hub: Clean X3 28 spoke holes, 12mm through-axle, 104mm spacing

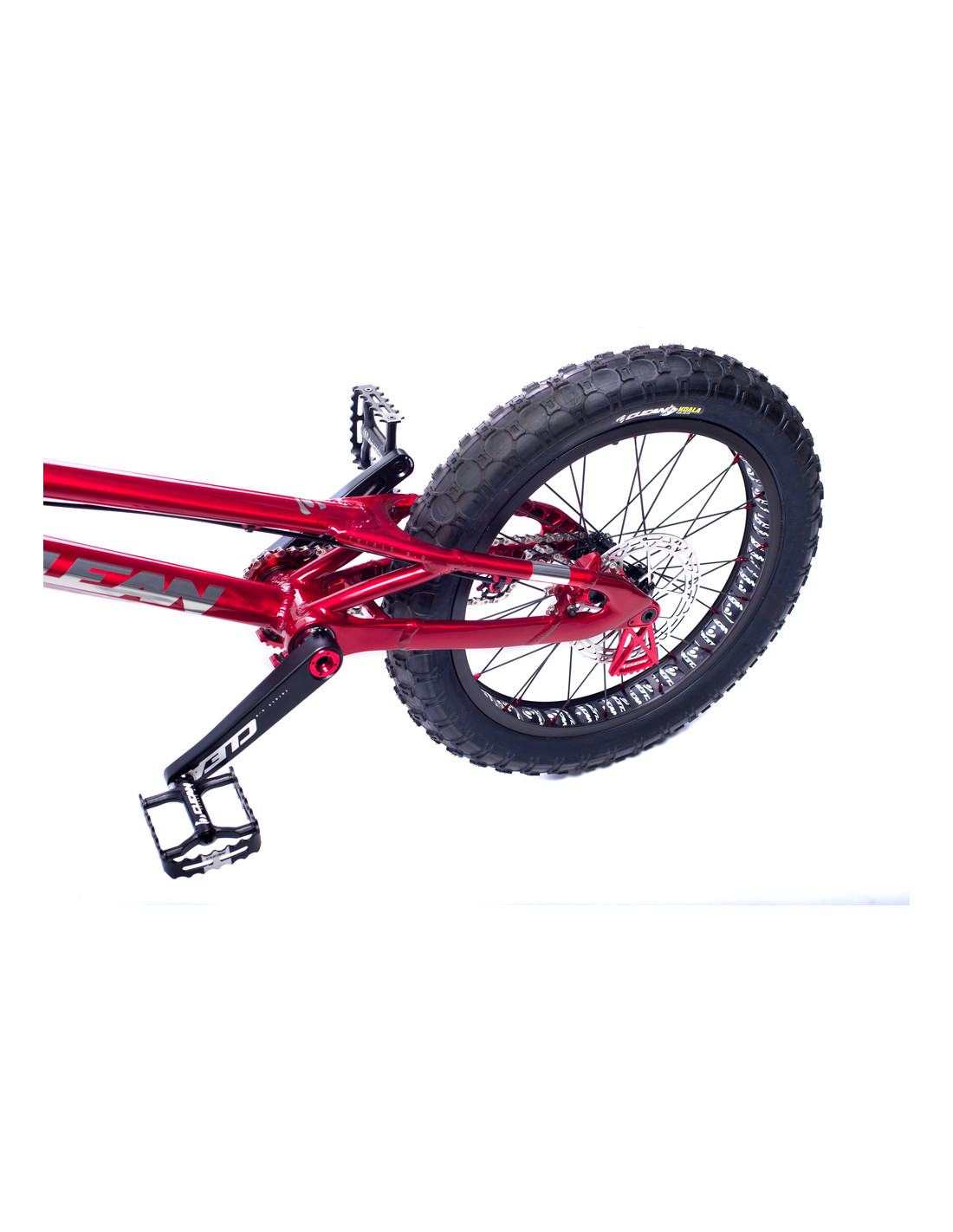

- Rear hub: Clean X3 32 spoke holes, 12mm through-axle and rotor mounts, 120mm spacing, Shimano HG splines.

- Chain tensioner: Clean X2 PRO integrated, with two 10T jockey wheels made of 7075 T6 aluminium

- Front rim: Clean Trials PRO 20”, single wall, 34mm wide, 28 spoke holes, anodized black - Rear rim: Clean Trials PRO 19”, single wall, 48mm wide, 32 spoke holes, anodized black

- Spokes: Aero Ultra light spokes, black

- Rim tape: Clean, black - Front inner tube: Clean 20"

- Rear inner tube: Clean 20"

- Front tyre: Clean Koala 20” x 2.00”

- Rear tyre: Clean Koala 19” x 2.60” Brakes

- Front brake: Hope Tech 3 Trial Zone or Clean HS rim brake (depending on brakes choice)

- Rear brake: Hope Tech 3 Trial Zone - Rotors: Clean RS, 160mm (front), 162.5mm (rear)

- Disc protector: Clean

- Rim brake pads: Clean X2

- Brake clamps: Clean X2 Washerless Drivetrain

- Crankset: New Clean X2 3-piece set, with Press Fit BB30 30mm diameter BB axle, CNC machined, with a new adjustment system(without cups, integrated bearings). 160mm long cranks, for Shimano HG-splined freewheel, available in black with Clean silver graphics

- Freewheel: Clean X2 135.9 18T, with 135 engagement points, 9 pawls and 18 teeth, red

- Chain: KMC X9, silver

- Rear sprocket: Clean 12T splined, made from 7075-T6 aluminium alloy, anodized black

- Pedals: Clean single cage, 7075-T6 aluminium alloy, anodized black

- Bashplate: Clean Light 2-piece mini-bashplate, anodized red Steering

- Headset: Clean Internal Tapered 1 1/8”-1.5”, with 7075-T6 aluminium cups, sealed bearings, anodized red

- Grips: Extra-thin Clean foam, black

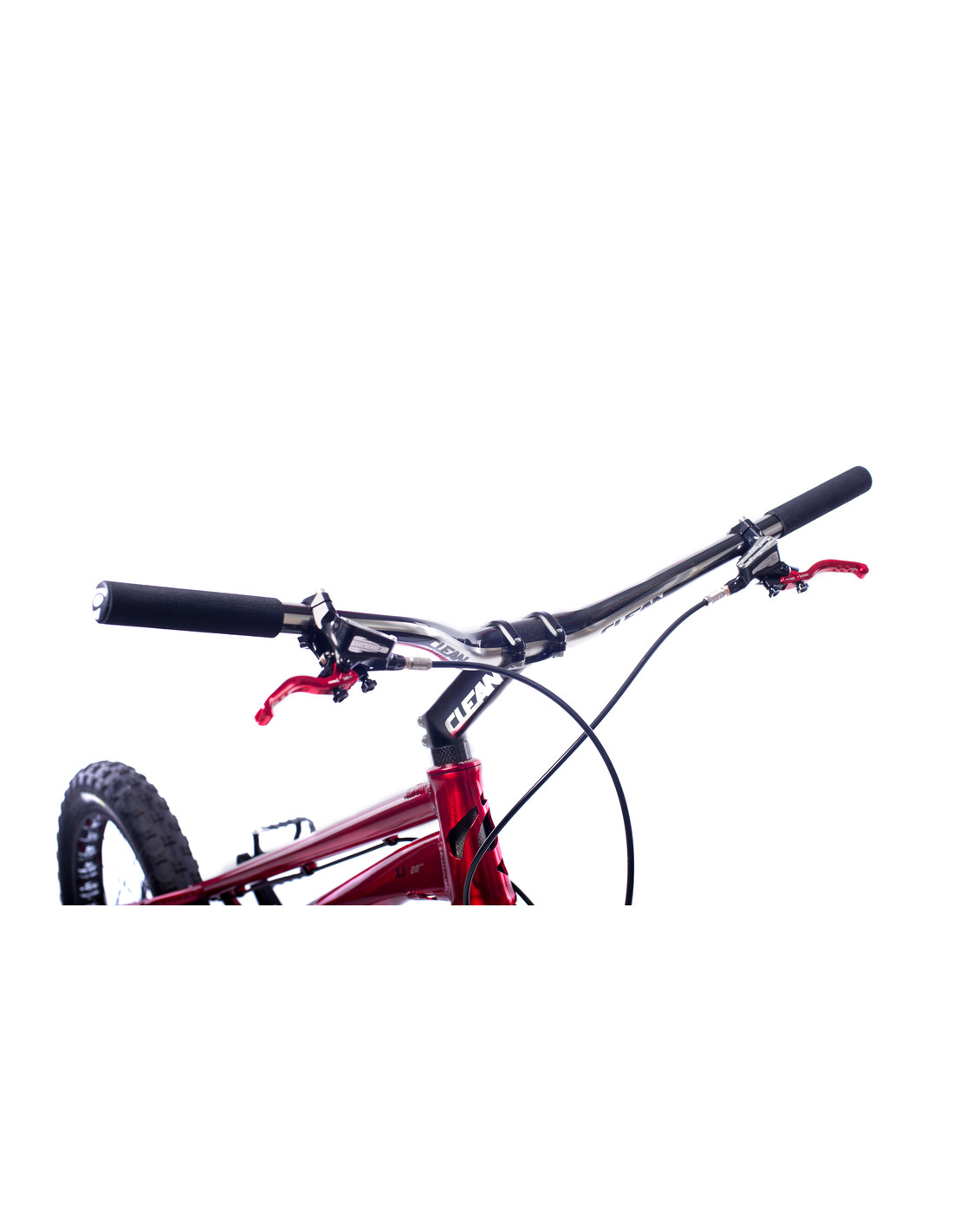

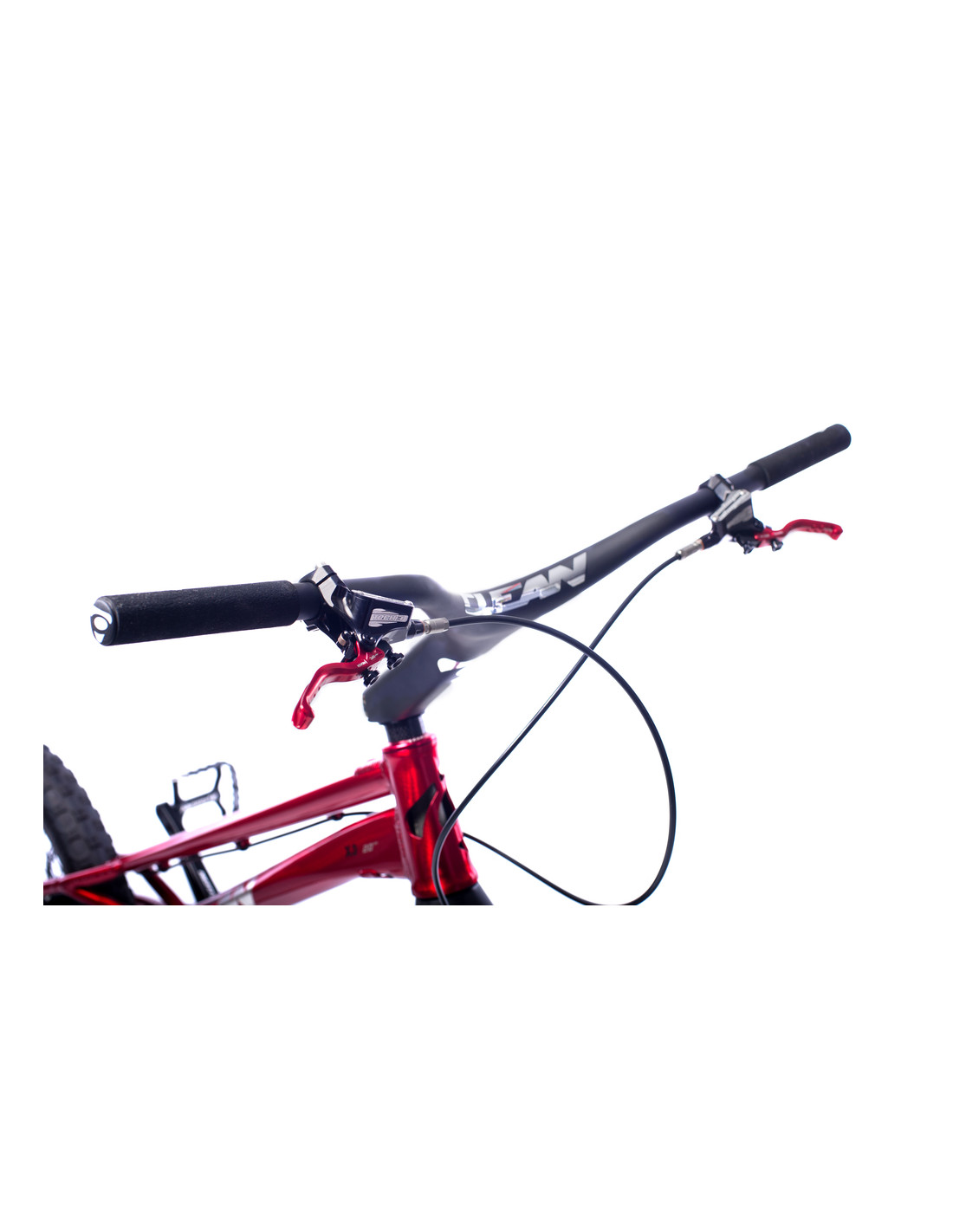

- Steam and Handlebar: Combo carbon fibre, 720mm long, black finish with 12K carbon top layer.

Geometry:

- Wheelbase: 1010mm

- Chainstay length: 350mm

- Bottom bracket rise: +87mm

- Head angle: 72º

Weight

- Undetermined.
