Jitsie Varial 24" disc 2024


Dostupnost :
Na dotaz
Jitsie Varial 24" 1045mm 2024
24 500 Kč s DPH
20 248 Kč bez DPH
Počet :

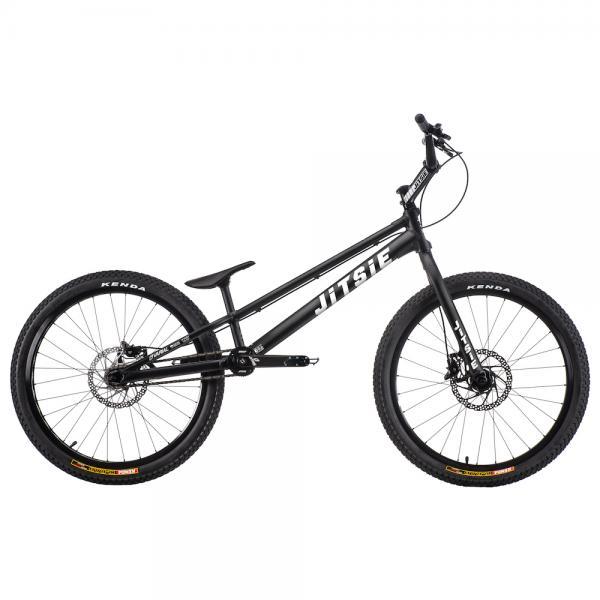

Taking it from the sections into the streets, the Varial 24" Hybrid bike combines quality manufacturing and functional minimalist design into a performant, lightweight and durable trials bicycle that is suitable to go for obstacles in a trial as well as on the streets.

Frame kit:
* frame: Jitsie Varial Hybrid 1045mm disc
* fork: Jitsie Varial 400mm disc 1.1/8"

Features frame:
* manufactured from aerospace 6061-T6 aluminium
* minimalist design with a focus on performance and durability
* 120mm high CNC machined head tube designed for semi-integrated headset
* 68mm wide bottom bracket shell for ISIS bottom bracket
* CNC machined post mount rear disc brake support suitable for 160/162mm rotor includes integrated rear dropout for increased strength and +20mm adaptor for 180mm brake disc
* CNC machined horizontal dropouts distanced 116mm apart come supplied with steel snail cam bolts
* sandblasted and black anodized finish with Jitsie graphics
* frame comes supplied with a Jitsie seat

Geometry:
* wheelbase: 1045mm
* chainstay length: 370mm
* bottom bracket height: 50mm
* head tube: 120mm
* head tube angle: 71.5°
(geometry based on Jitsie Varial fork 400mm and +35mm offset)

Wheels:
* hub front / rear: Jitsie 100mm 28h disc black / Jitsie 116mm 32h disc black
* rim front / rear: Jitsie 24" 32mm 28h black / Jitsie 24" 32mm 32h black
* spokes / nipples: inox 1.8mm black / aluminium black
* tyre front / rear: Kenda K-Rad 24"x2.3 / Kenda K-Rad 24"x2.3
* tubes: Jitsie 24" light 0.9mm

Components:
* headset: Jitsie semi-integrated 1 1/8"
* headset spacer: Jitsie 10mm + 5mm aluminium black
* stem: Jitsie 120mm 35° with flat cap black
* handlebar: Jitsie 31.8mm 730x100mm Hybrid aluminium black
* grips: foam
* front brake: Shimano MT400 / Shimano 180mm brake disc / +20mm adapter
* rear brake: Shimano MT400 / Shimano 180mm brake disc / +20mm adapter

Drivetrain:
* bottom bracket: Jitsie ISIS 128mm steel
* cranks: Jitsie 170mm black
* pedals: Jitsie flat aluminium black
* freewheel: Jitsie 108.9 18t
* protector: Jitsie symmetric full bash ring black
* sprocket: Jitsie steel 14t
* chain: KMC X8
* chain tensioner: Jitsie aluminium/steel snail cams

Weight:
* 9.83kg including pedals

Extra:
* Jitsie and Off>Road>Action reserve the right to partially modify the components of the bike according to available stocks and in harmony with the original specifications. The pictures shown are non-contractual.
