Jitsie Varial Race 920 disc


Dostupnost :
Na dotaz

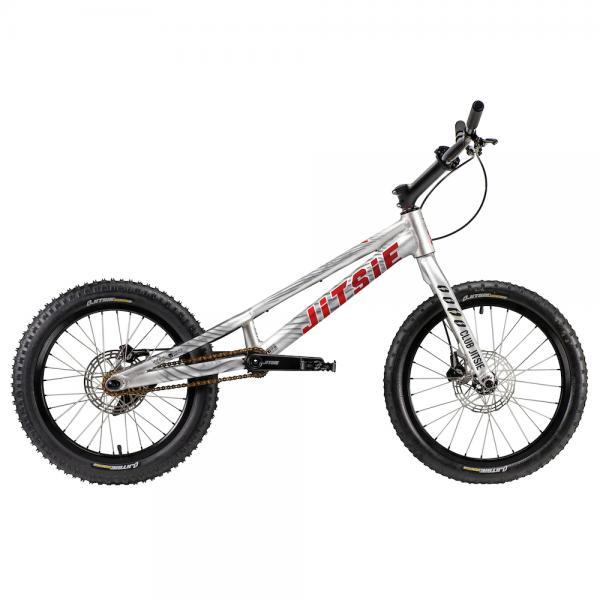

Jitsie Varial Race bike 920mm disc
52 500 Kč s DPH
43 389 Kč bez DPH
Počet :

The Jitsie Varial Race bike continues its evolution for 2024 and takes innovation to the next level in trials. Highlights include its aluminium frame with triple butted hydroformed tubes, innovative rear thru axle setup with integrated snail cams and Race cranks. New for 2024 are the 135mm 25° stem and the option to select Jitsie or Hope brakes. The unity of quality manufacturing and functional minimalist design result in a performant and durable competition bike that makes it the choice for any serious trials rider.

Frame kit:
* frame: Jitsie Varial Race 920mm disc tapered with 12mm thru axle
* fork: Jitsie Varial Race 350mm disc tapered 1.1/8" - 1.4" with 10mm thru axle

Features frame:
* hydroformed triple butted tubes from premium 6061-T6 aluminium to save weight and increase stiffness
* competition oriented design with a focus on performance and durability
* 110mm high CNC machined head tube designed for a semi-integrated tapered headset
* CNC machined threaded 68mm wide bottom bracket shell
* innovative tapered seat tube increases stiffness around the bottom bracket area
* CNC machined post mount rear disc brake support for 162mm rear brake disc Race includes integrated rear dropout for increased strength
* CNC machined custom dropouts distanced 116mm apart come supplied with Jitsie exclusive 12mm rear spindle system
* carbon rear disc protector mounted directly to the frame
* sandblasted silver finish with Jitsie Race graphics

Geometry:
* wheelbase: 920mm
* chainstay length: 350mm
* bottom bracket height: 55mm
* head tube: 110mm
* head tube angle: 71.5°
(geometry based on Jitsie Varial Race tapered fork 350mm and +-45mm offset)

Wheels:
* hub front / rear: Jitsie 100mm 28h disc Race black / Jitsie 116mm 32h disc Race black
* rim front / rear: Jitsie 20" 32mm 28h black / Jitsie 19" 48mm 32h black
* spokes / nipples: Jitsie inox 1.8mm silver / aluminium black
* tyre front / rear: Jitsie Reverz 20"x2.0 / Jitsie Reverz 19"x2.6
* tubes: Jitsie 20" light 0.9mm

Components:
* headset: Jitsie semi-integrated tapered 1.1/8" - 1.4"
* headset spacer: Jitsie 5mm carbon Race
* stem: Jitsie 135mm 25° stem with Jitsie stem cap black
* handlebar: Jitsie 31.8mm 640x90mm carbon with Jitsie handlebar pad
* grips: foam

Brakes:
* front brake Jitsie: Jitsie disc brake master cylinder Race / Jitsie brake hose / Jitsie disc brake caliper Race with Jitsie brake pads Race / Jitsie brake disc 160mm Race
* rear brake Jitsie: Jitsie disc brake master cylinder Race / Jitsie brake hose / Jitsie disc brake caliper Race with Jitsie brake pads Race / Jitsie brake disc 162mm Race / Jitsie carbon brake disc protector
* front brake Hope: Hope Tech 4 disc brake master cylinder / Hope brake hose / Hope Trial Zone disc brake caliper with Hope brake pads / Jitsie brake disc 160mm Race
* rear brake Hope: Hope Tech 4 disc brake master cylinder / Hope brake hose / Hope Trial Zone disc brake caliper with Hope brake pads / Jitsie brake disc 162mm Race / Jitsie carbon brake disc protector

Drivetrain:
* bottom bracket: Jitsie ISIS 118mm
* cranks: Jitsie Race 150mm black
* crank bolts: Jitsie aluminium Race black
* pedals: Jitsie simple cage black
* freewheel: Jitsie 108.9 16t
* protector: Jitsie bash plate black
* sprocket: Jitsie steel 13t
* chain: KMC K1SL gold
* chain tensioner: Jitsie 12mm thru axle with integrated snail cams

Weight:
* 7.5kg including pedals and handlebar pad

Extra:
* Jitsie and Off>Road>Action reserve the right to partially modify the components of the bike according to available stocks and in harmony with the original specifications. The pictures shown are non-contractual.
